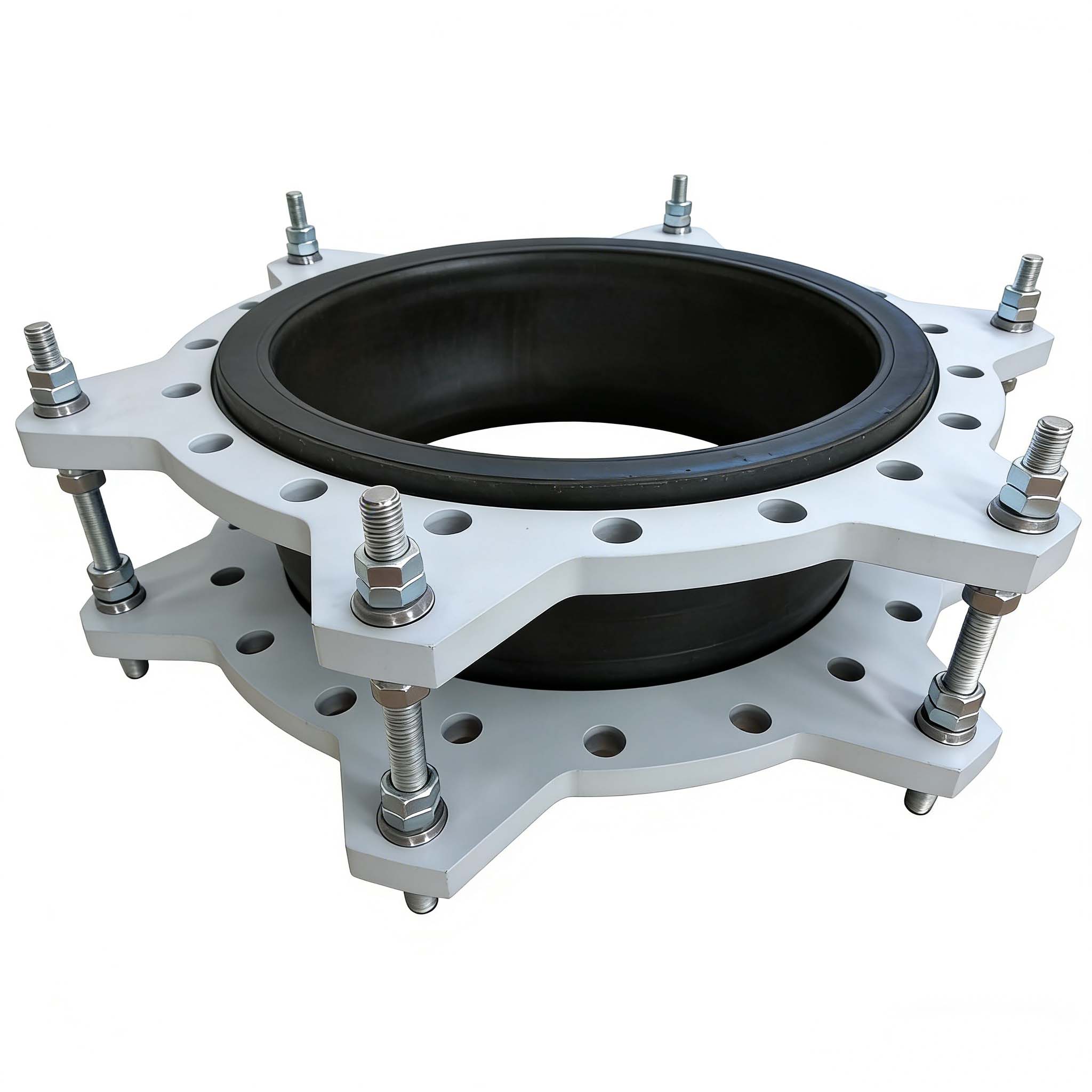

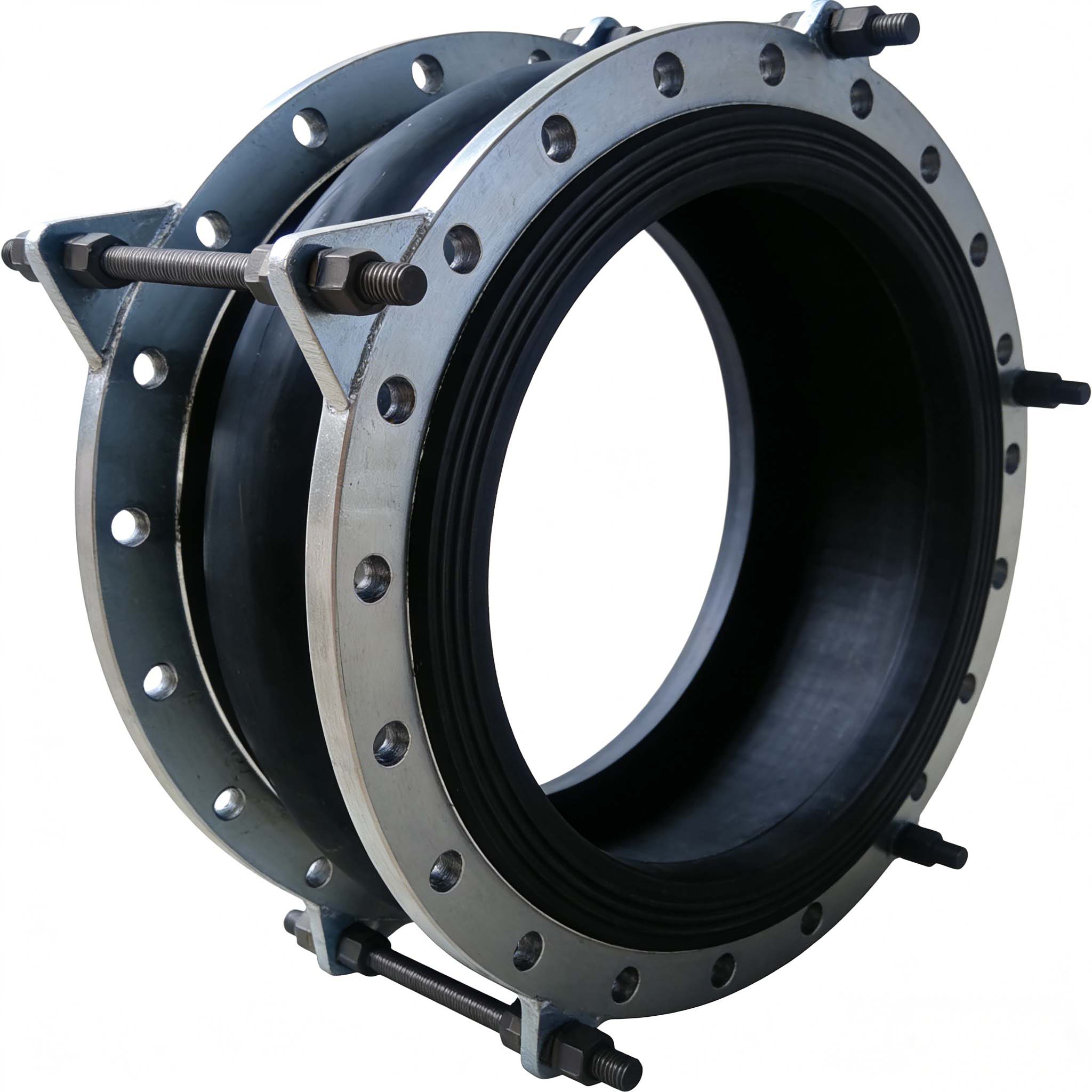

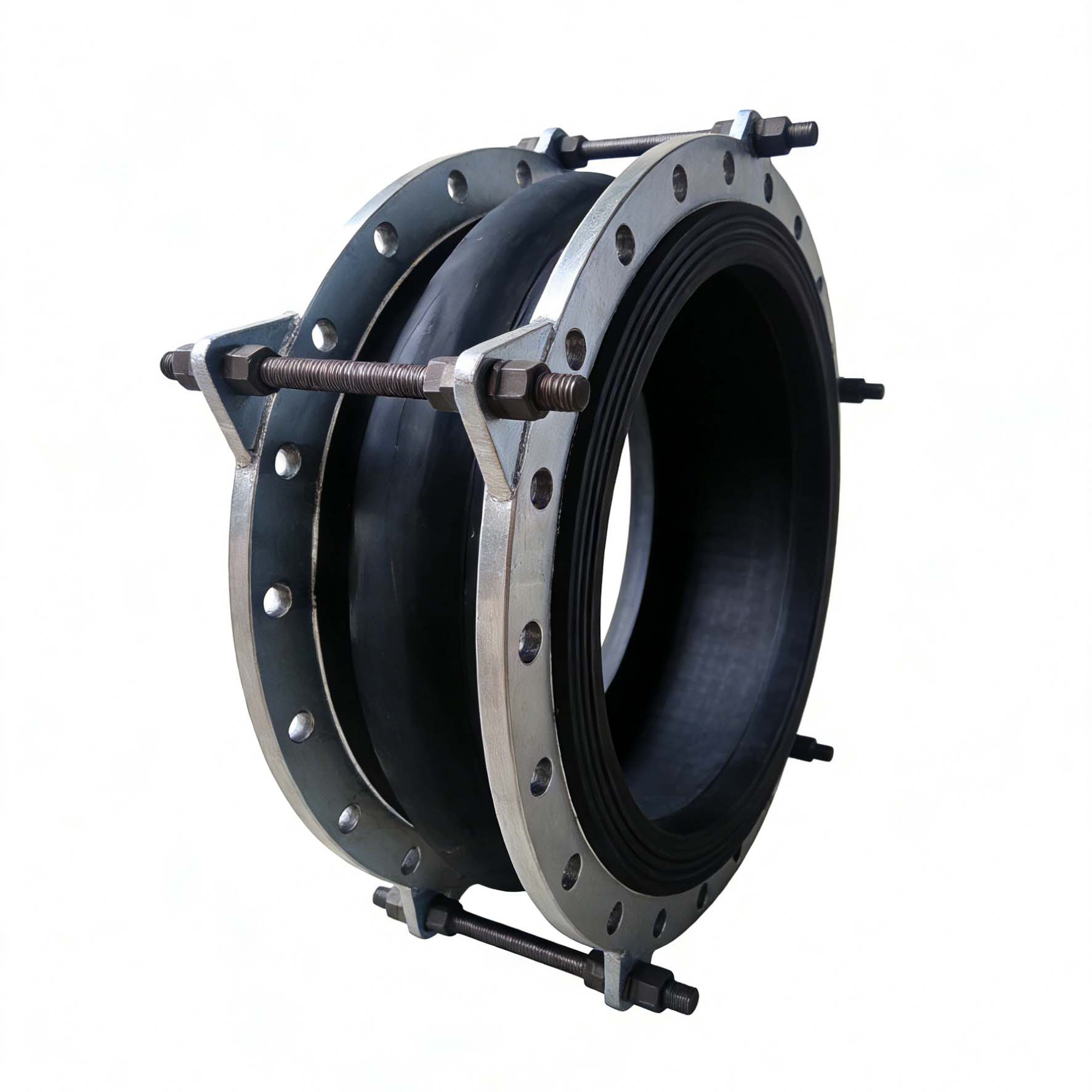

DEVEL Hand-built Rubber Expansion Joints are precision-engineered for critical piping positions where standard mass-produced molded connectors cannot fulfill operating tolerances. Fabricated manually by skilled technicians utilizing a high-performance manual hand-wrapping process, these joints eliminate mold dimension limits entirely. They deliver robust flexibility, exceptional vacuum resistance, and long-term mechanical reliability for large-diameter pipelines and custom face-to-face configurations.
Key Structural Advantages
- 100% Custom Configurations: Manufactured without standard mold restrictions, allowing full technical customization of Face-to-Face (F-F) lengths, customized arch designs, and non-standard drilling profiles.
- Heavy-Duty Reinforcement Architecture: Features hand-layered premium elastomers integrated with multi-layer high-tensile polyester cord, aramid fibers, or embedded steel wire to resist severe pressure surges.
- Uniform Wall Integrity: The specialized manual hand-wrapping technique guarantees a balanced, uniform wall thickness and optimized stress distribution, reducing internal friction and delamination risks.
- Engineered Media Resistance: Available with selected interior liners tailored to isolate aggressive chemical compounds, high-salinity seawater, or abrasive industrial slurries.
Technical Specifications
| Specification Parameter | Engineering Details |
|---|---|
| Size Range | DN200 to DN4000 (8″ to 160″+) |
| Working Pressure Rating | Up to 25 Bar (Custom higher pressure capabilities available) |
| Vacuum Resistance | Full vacuum capabilities supported by engineered internal steel reinforcing rings |
| Elastomer Body Materials | EPDM, NBR (Nitrile), Chloroprene (Neoprene), Butyl, FKM (Viton), Hypalon |
| Flange Standard & Materials | Carbon Steel Q235, Stainless Steel 304/316/316L (Galvanized, Hot-Dip, or Epoxy Coated) conforming to ANSI/ASME, DIN, BS, EN1092, JIS |
| Temperature Threshold | -40°C to +150°C (subject to specific lining compound configuration) |
Engineering Note: Due to the high adaptability of the hand-built manual fabrication method, custom modifications regarding movement capacities, concentrated structural weights, or multi-arch layouts can be engineered directly into the production process according to client blueprint demands.
Industrial Sectors & Applications
DEVEL hand-built heavy-duty expansion joints are systematically integrated into large-scale engineering piping arrays where operational continuity is imperative:
- Power Generation Infrastructures: Deployed within major cooling water loops and thermal condenser interface connections.
- Seawater Desalination Plants: Configured with specialized custom chemical linings to prevent high-salinity corrosion.
- Municipal Municipal Utilities: Implemented in large-diameter water delivery systems, heavy intake pipelines, and primary pumping stations.
- Heavy Chemical & Mining Operations: Optimized for the processing and secure containment of highly abrasive slurry matrixes and concentrated acidic media.
