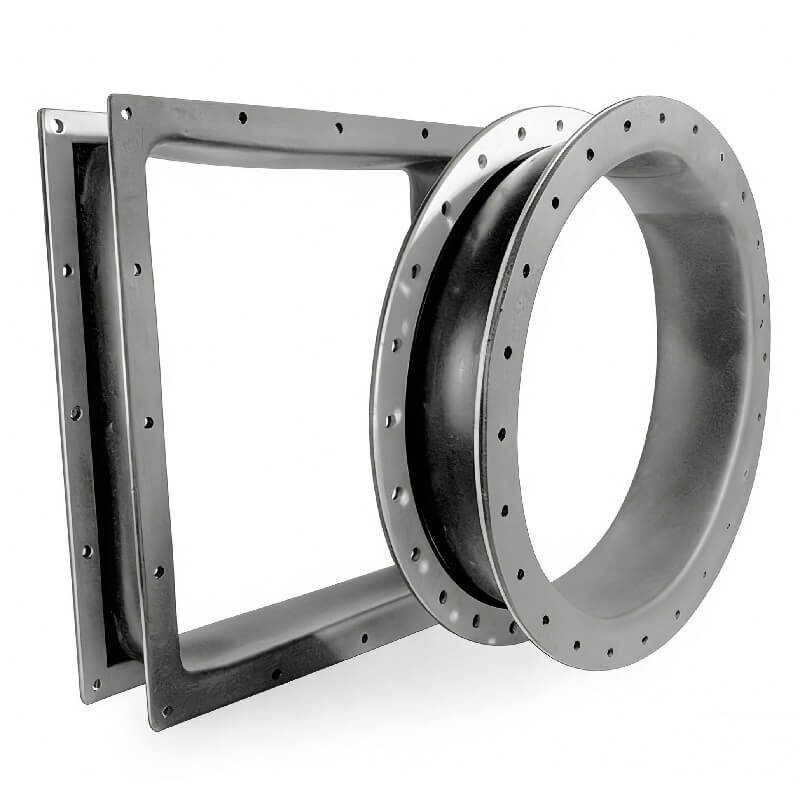

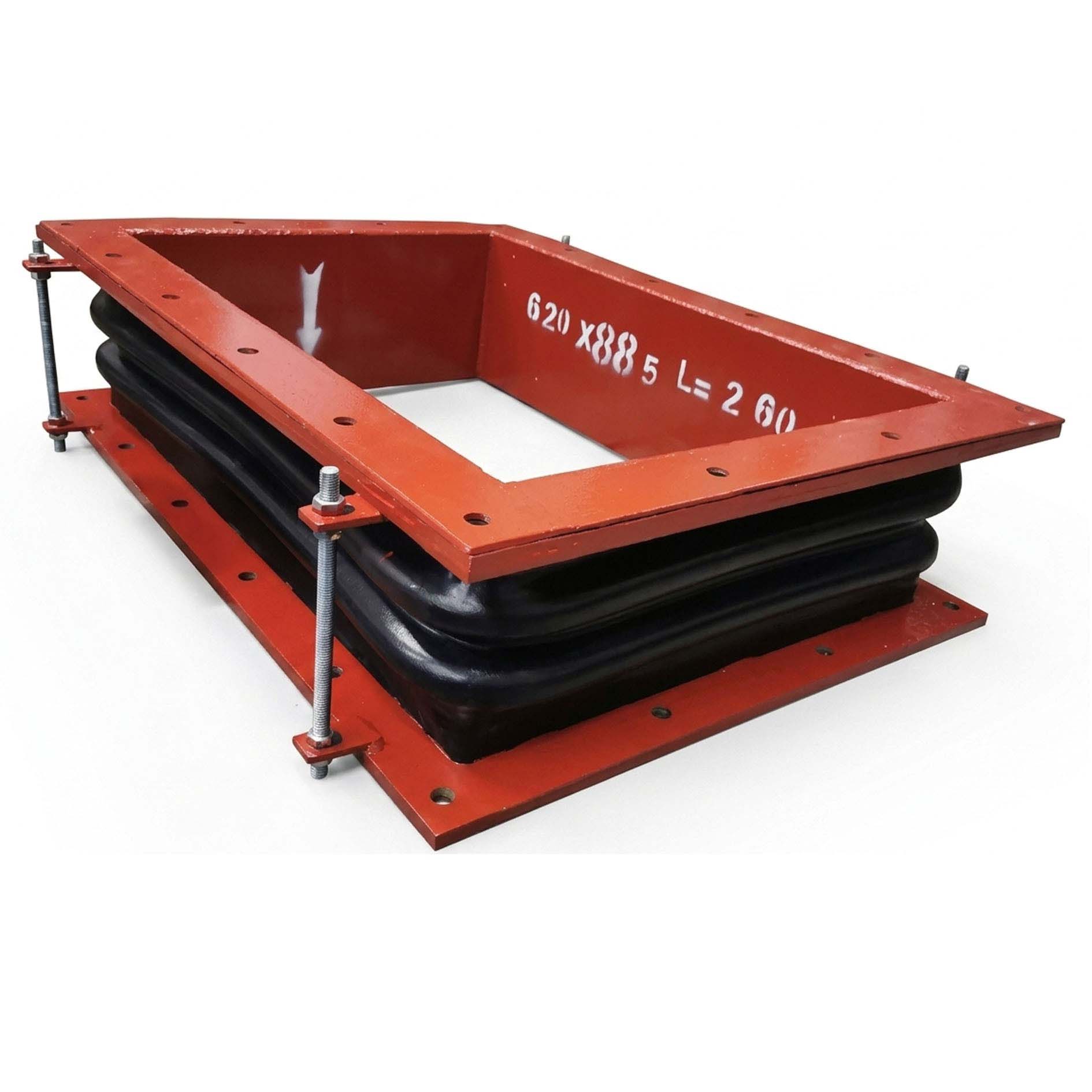

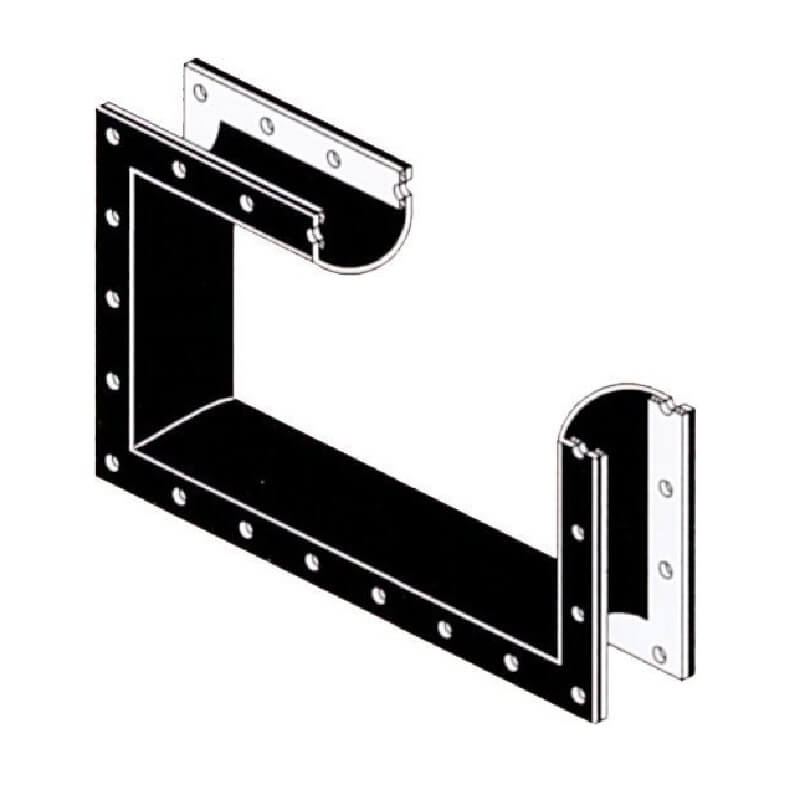

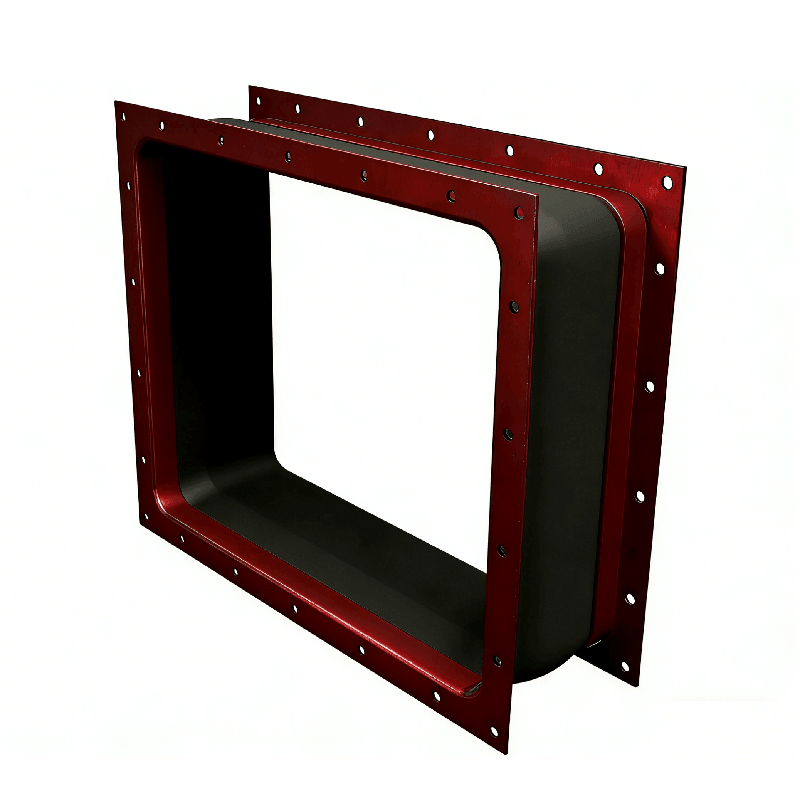

Rectangular Rubber Expansion Joint
(Flexible Duct Connector)
1. Product Overview
The Devel® Rectangular Rubber Expansion Joint is a high-integrity flexible connector designed specifically for industrial ducting systems. The core compensation section is constructed from hand-wrapped, multi-layer reinforced elastomers. This specialized rubber construction allows the joint to absorb large amounts of axial, lateral, and angular movement while acting as an exceptional isolator against mechanical vibration and system noise. |
2. Key Technical Advantages
|
| |||
|
| |||
| ||||
3. Material Customization
| Liner Options Chlorobutyl (Standard) for heat resistance, EPDM for general weather/steam, and FKM (Viton) for extreme chemical and acid exposure.Covers Durable Neoprene or EPDM to protect against environmental degradation. |
4. Product Parameters
Technical Specifications | Details (Industrial Grade) |
Bellows Material | Reinforced High-Performance Rubber Elastomer |
Max Service Temperature | Up to 204°C (Specialty Compounds) |
Max System Pressure | ±35 KPa (Continuous Service) |
Compensation Capability | Multi-dimensional (Axial, Lateral, Angular) |
Reinforcement | Multi-ply High-Tenacity Synthetic Tire Cord |
Connection Standard | Integral Rubber Flanges with Steel Retaining Rings |
Size Capability | Fully Customizable Rectangular / Square Profiles |
