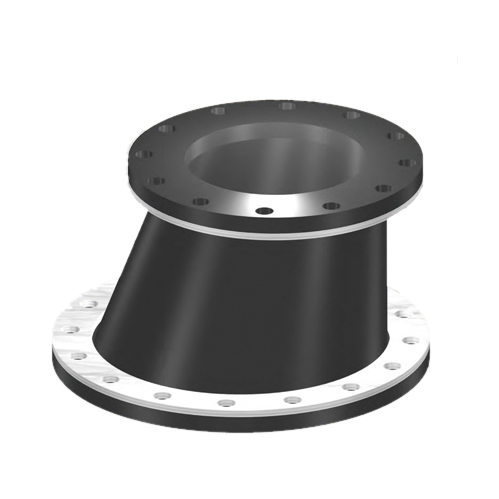

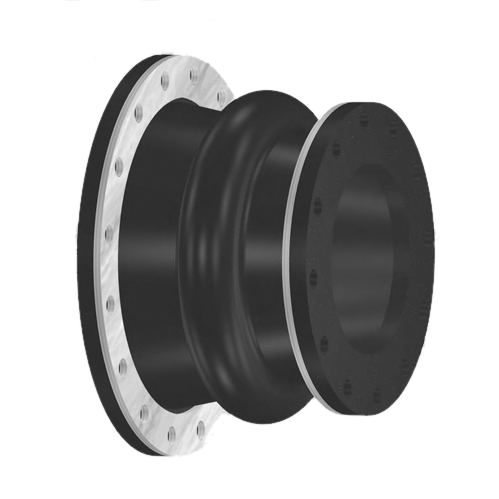

Reduced rubber expansion joint

Model No:

Small volume, light in weight, very good flexibility, Convenience installation and maintenance

Transverse displacement, axial displacement, angular displacement

Reduce noise, shock absorption

Details
Specification
Product Details

The Concentric reducing rubber joint is an essential component in the modern piping industry, renowned for its superior shock absorption capabilities. This meticulously designed product is engineered to alleviate the stresses and strains of thermal expansion, water hammer, and other dynamic forces in pipework systems. With its inherent flexibility, it serves as a critical device for ensuring the longevity and integrity of pipeline networks.The Concentric reducing rubber joint is at the leading level because the main skeleton material is the first polyester cord fabric in China. The quality product certificate issued by the state, province and city for many times.

Specification

Key Words:

Concentric Reducing Rubber Joint

Corrosion Resistance:

Yes

Pressure Rating:

PN6-PN40

Drawing:

Offer

Material:

NR, NBR, EPDM, Etc

Shock Absorption:

Yes

Noise Reduction:

Yes

Application:

Water Supply, Sewage, Industrial Pipelines



DNmax×DNminLength
(mm)
Axial displacemenHorizontal
movement
(mm)
Deflection
angle
(a1+a₂)
DNmax×DNminLength
(mm)
Axial displacementHorizontal
movement
(mm)
Deflection
angle
(a1+a₂)
Extension
(mm)
Compression
(mm)
Extension
(mm)
Compression
(mm)
32×2511520304535°125×10020022304035°
40×2511520304535°150×5020022304035°
40×3211520304535°150×12520025354030°
50×3218020304535°200×8020025354030°
50×4018020304535°200×15020025354030°
65×3218020304535°250×10022025354030°
65×5018020304535°300×25022025354030°
80×4018020304535°350×30024025353530°
80×6518020304535°400×35024025383530°
100×4018022304035°500×30024028383526°
100×8018022304035°500x40024028383526°
125×518022304035°600*40024028383526°
• Special size and length can be customized for you.
