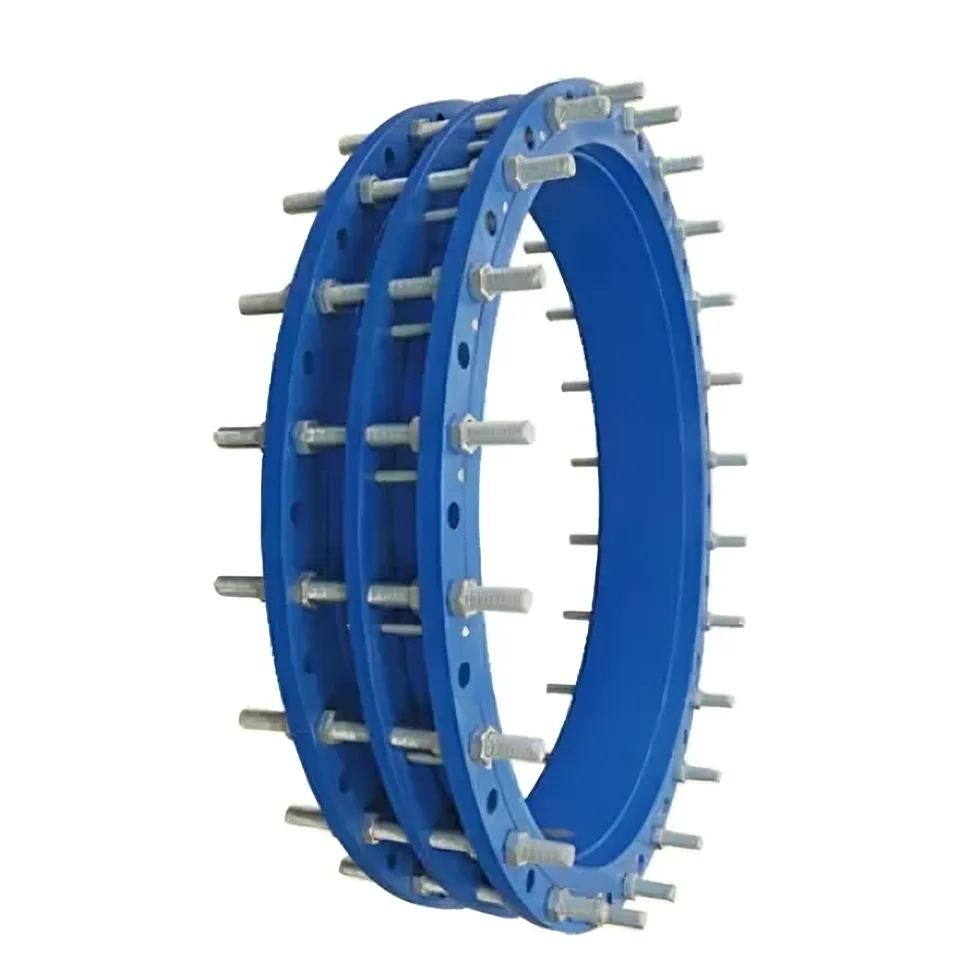

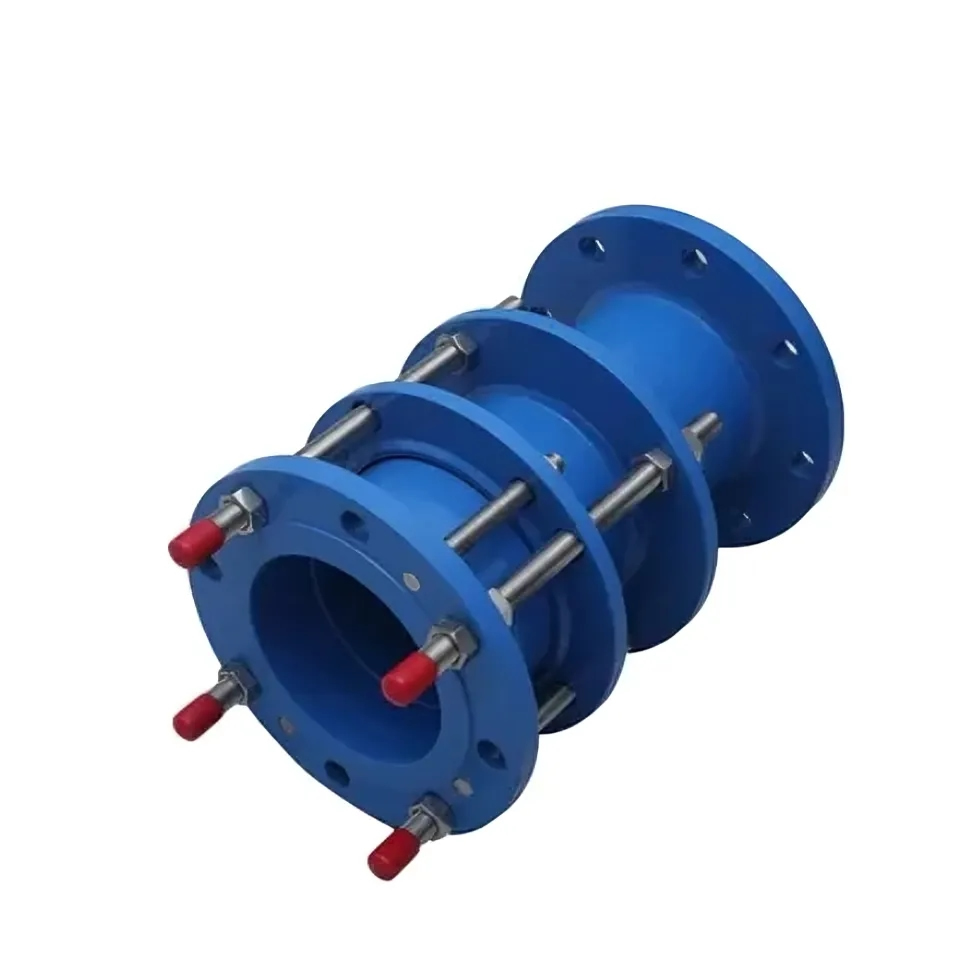

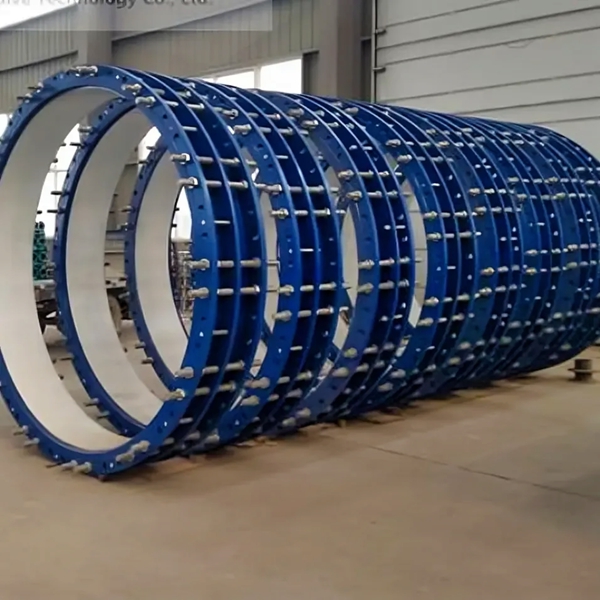

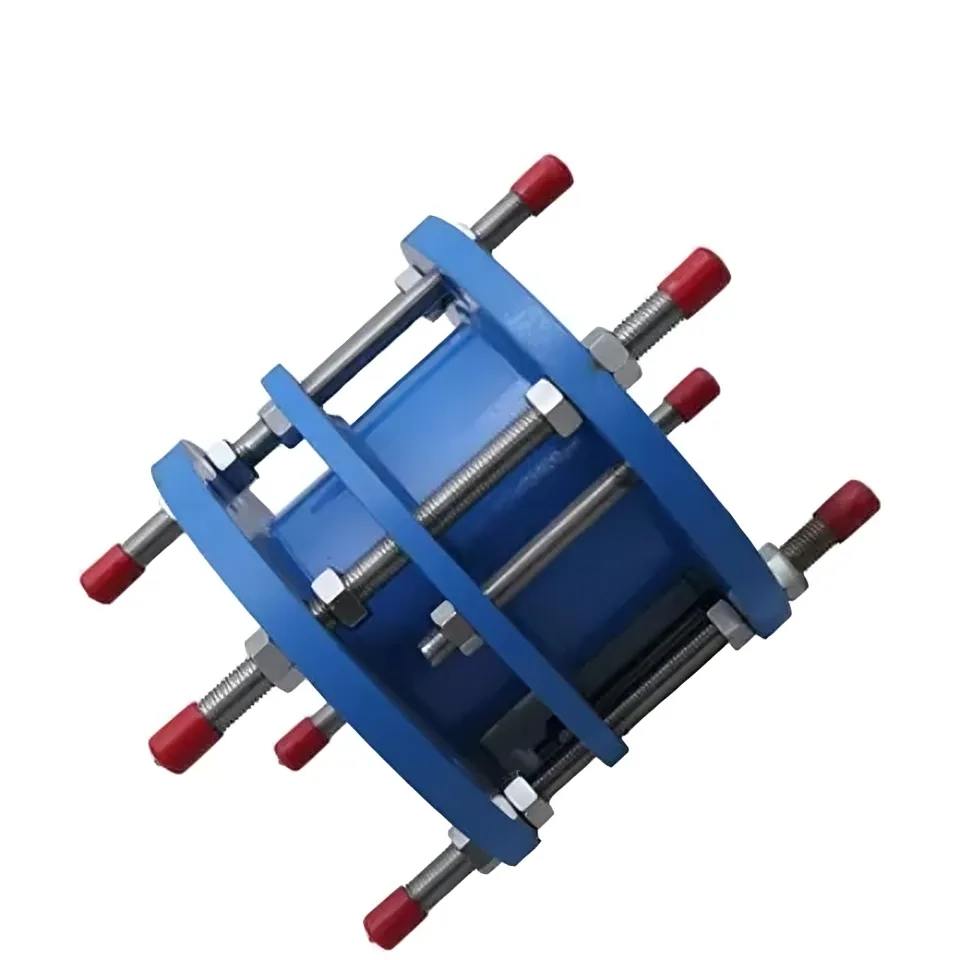

Dismantling Joint Series C2F

Model No:

Corrosion resistant construction;

Studs are located on every flange hole;

Tie rods are required from the upstream todownstream sides of the pipe equipment installation

Details
Specification
Product Details

The Galvanized Steel Joint Sleeve is designed to meet the highest standards of quality and durability. It is capable of withstanding extreme temperatures and harsh environments, making it an ideal choice for a wide range of applications. The Steel Joint is available in a variety of flange standards, including DIN PN10, PN16, PN25, ANSI 150LB, 300LB, and JIS 10K, ensuring that it can be used in a variety of settings and scenarios.

Whether you are working on a large construction project or simply need a reliable connector for your plumbing system, the Steel Joint is an excellent choice. Its high load capacity, durable construction, and versatile design make it a popular choice among professionals in a variety of industries. So if you are looking for a reliable and efficient connector that can handle heavy loads and withstand extreme conditions, the Steel Joint is the perfect solution.


Specification


No.NameQTYMaterial
1Main body1QT450-10, Q235A
2Seal ring1NBR, CR, EPDM
3Gland1QT450-10, Q235A
4Limited short pipe1Q235A
5BoltnQ235A, 35#
6NutnQ235A, 20#


inal diameterOuter diameter Dw of pipeSize of flange connectionInstallation sizeRegulation movementQuality/kg
Outer diameter D of flangeDiameter D1 of central circle in the bolt holeDiameter of bolt hole
n/unitdo
65761601304142002011.8
80891901501813.5
10011421017018.6
125140240200823.8
15016826522530.4
20021932028036.9
2502733753351249.6
300325440395222202561.5
35037749044579.3
4004265404951691.2
450480595550104.1
50053064560020123.2
60063075570526240169.8
70072086081024208.9
8008209759203035030346.1
90092010751020380.6
100010201175112028438.8
1200122014051340323337030646.7
14001420163015603636843.6
1600162018301760403801189.7
180018202045197044391394.8
200020202265218048424001665.5
2200222024752390522056.7
2400242026852600562350.1
26002620290528106048450402720.4
2800282031153020643053.2
3000302033153220683460.3
3200322035253430723912.6
